Space Threat Assessment Testbed (STAT)

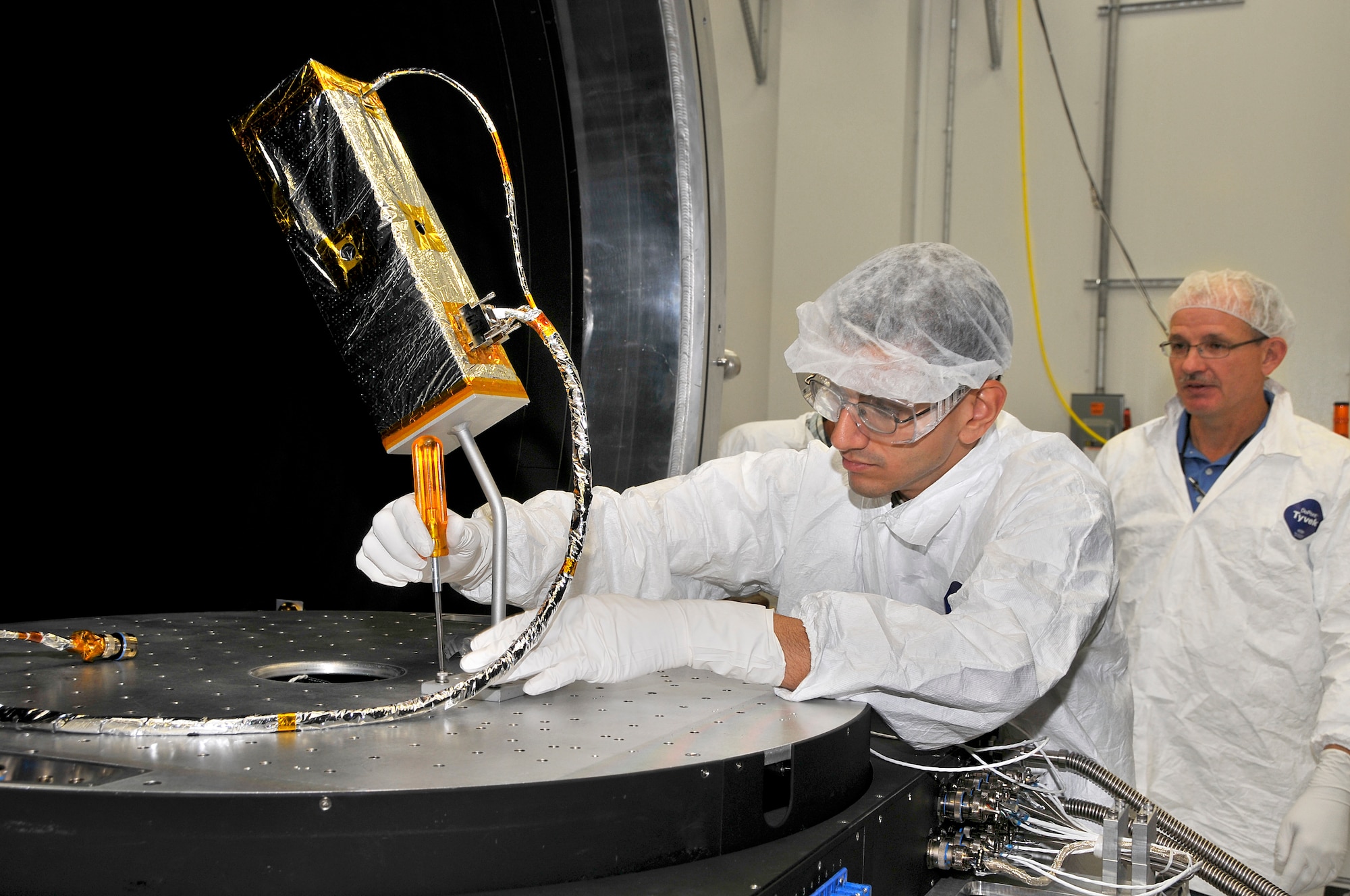

STAT is a ground test facility for evaluating the performance of materials, components, subsystems, and small satellites in a test environment capable of providing conditions from low Earth orbit to geosynchronous operations.

STAT simulates natural orbital environment conditions ranging from quiet to various geomagnetic effects generated as a result of solar activity that can impact space assets. Self-induced environmental conditions associated with space systems may also be simulated during testing to investigate potential system-level interactions.

Test chamber conditions and test article observables may be accessible to program sponsors for test article monitoring and control under varying simulated space conditions. Local support is available at Arnold Engineering Development Complex for test planning and execution, and to conduct analysis of test results.

Using the STAT test cell for Research, Development, Test & Evaluation (RDT&E) of materials, components, subsystems, and evolving technologies in a representative space environment can lower development costs and reduce the risk of failure of mission-critical assets. The ability to simulate multiple environmental effects under controlled conditions in a single instrumented chamber provides significant flexibility to support customer requirements. Rapid reconfiguration of test articles and adjustments in test chamber conditions further contribute to a cost-effective test regimen.

SPECIFICATIONS

Test Section: 75cm x 75cm x 75cm (2.5 ft x 2.5ft x 2.5ft), 100 kg (220 lbm) maximum mass Chamber: 1x10-7 kPa (1x10-6 Torr) base pressure, 100 K temperature, housed in ISO Class 7 (Class 10,000) cleanroom



Natural Environment Induced Environment

Protons:
30 to 150 keV, 1x102 to 1x108 p+/cm2/sec

Electrons:
20 to 100 keV, 5x102 to 5x108 e-/cm2/sec

Solar:
120 to 2,500 nm photons at 1 sun (±20%)

Atomic Oxygen:
1x1010 to 2x1012 O/cm2/sec at 5eV

Outgassing:
up to 500 g space material

EP Backflux:
50 to 1,000 eV, 1x103 to 1x108 Xe+/cm2/sec

Charging:
induce and measure up to ±140 V

LANDING GEAR TEST FACILITY

Overview

The Landing Gear Test Facility (LGTF) has been a cornerstone of aerospace testing at Wright-Patterson Air Force Base since 1942, dedicated to ensuring the reliability and performance of aircraft landing gear systems.

Throughout its history, the LGTF has supported the warfighter by providing critical data to enhance the safety and effectiveness of landing gear, wheels, tires, and brakes, directly contributing to the mission of the United States Department of Defense. In addition to its military focus, the LGTF offers comprehensive testing services to commercial entities, employing world-unique test machines capable of simulating real-life conditions with unparalleled accuracy.

Guided by the core values of Integrity, Service, and Excellence, the LGTF consistently delivers precise and dependable data to both military and commercial partners.

Test Machine Capabilities



 Overall System Specifications:

Max Speed: 250 mph
Max Acceleration: 21 ft/s2
Inertial Equivalent: 2,445 - 20,063 lbs.
Max Kinetic Energy: 41,750,000 ft-lbs.


South Carriage Specifications:

Max Load: 40,000 lbs.
Max Torque: 375,000 in-lbs.
Max Tire Size: 64 in


North Carriage Specifications:

Max Load: 25,000 lbs.
Max Torque: 72,000 in-lbs.
Max Tire Size: 48 in

Overall System Specifications:

Max Speed: 350 mph
Max Acceleration: 24 ft/s2

South Carriage Specifications:

Max Load: 150,000 lbs.
Max Yaw: ± 20°
Max Camber: ± 20°

North Carriage Specifications:

Max Load: 100,000 lbs.



Overall System Specifications:

Max Speed: 200 mph
Max Acceleration: 2 ft/s2
Inertial Equivalent: 10,147 - 162,987 lbs.
Max Kinetic Energy: 205,000,000 ft-lbs.

South Carriage Specifications:

Max Load: 301,500 lbs.
Max Brake Torque: 5,800,000 in-lbs.

Overall System Specifications:

Max Speed: 250 mph
Max Acceleration: 16 ft/s2
Max Vertical Load: 150,000 lbs.
Max Yaw: ± 20°
Max Camber: ± 10°

Overall System Specifications:

Max Compressive Load: 3,000,000 lbs.
Max Tension Load: 1,000,000 lbs.
Max Stroke: 60 in
Max Height: 28 ft
Max Width: 10 ft
Platen Size: 60.5 x 96 in

Overall System Specifications:

Max Vertical Load: 75,000 lbs.
Max Side Load: 30,000 lbs.
Max Yaw: ± 90°
Max Camber: ± 10°
Max Tire Size: 56 in.
Table Length: 20 ft.
Max Travel Speed: 3 in/s
Roll Distance: 217 in



Overall System Specifications:

Below-grade safety enclosure
Dimensions: 72 x 120 x 126 in.
Water Pressure Limit: 5,000 psi
Rate of Inflation: 10 psi/min

Drop Tower #1

Load Range: 750 - 3,600 lbs.
Wing Lift: 200 - 3,600 lbs.


Drop Tower #2

Load Range: 2,000 - 10,300 lbs.
Wing Lift: 200 - 10,300 lbs.


Drop Tower #3

Load Range: 6,500 - 50,000 lbs.
Wing Lift: 200 - 35,000 lbs.


Drop Tower #4

Load Range: 35,000 - 150,000 lbs.
Wing Lift: 200 - 150,000 lbs.

Load frame that accommodates multiple hydraulic cylinders to provide controlled forcing and operational stresses to test objects in all 6 axes.
