HIGH-ENTHALPY ARC-HEATED FACILITIES AT AEDC

The High-Enthalpy Arc-Heated Facilities at Arnold Engineering Development Center provide aerothermal ground test simulations of hypersonic flight over a wide range of velocities and pressure altitudes in support of materials and structures development by the Department of Defense and the commercial aerospace industry.

The facilities are the sole DoD arc facilities in operation.  They can provide high-enthalpy test conditions that simulate aeroheating environments at velocities from 5,000 feet per second up to and exceeding 20,000 feet per second.

Role
Arc facilities are unique in their ability to reproduce thermal environments simulating flight from Mach 8 to 20 for the long exposure periods required to validate thermostructural performance and survivability of materials and components.  Arc heaters have found widespread usage in the development of high-speed vehicles, including hypersonic missiles, re-entry vehicles, high-speed transports, military/civil space transportation and space access vehicles, and ordnance and munitions systems.

Facility Description
AEDC's arc-heated test facilities include two high-pressure segmented arc heaters (HEAT-H1 and H3) and one Huels arcs-heated tunnel (H2).   The facilities utilize a high-voltage, d-c electric arc discharge to heat air to temperatures up to 13,000 degrees Rankine.  High-pressure test flows are achieved by confining the electrical arc discharge to a water-cooled plenum section capable of withstanding high chamber pressures above 100 atm.

The combination of high-enthalpy test gas and high plenum pressure makes possible heat flux simulations representative of flight at speeds in excess of Mach 20 at high dynamic pressures (i.e. low altitude flight simulation).

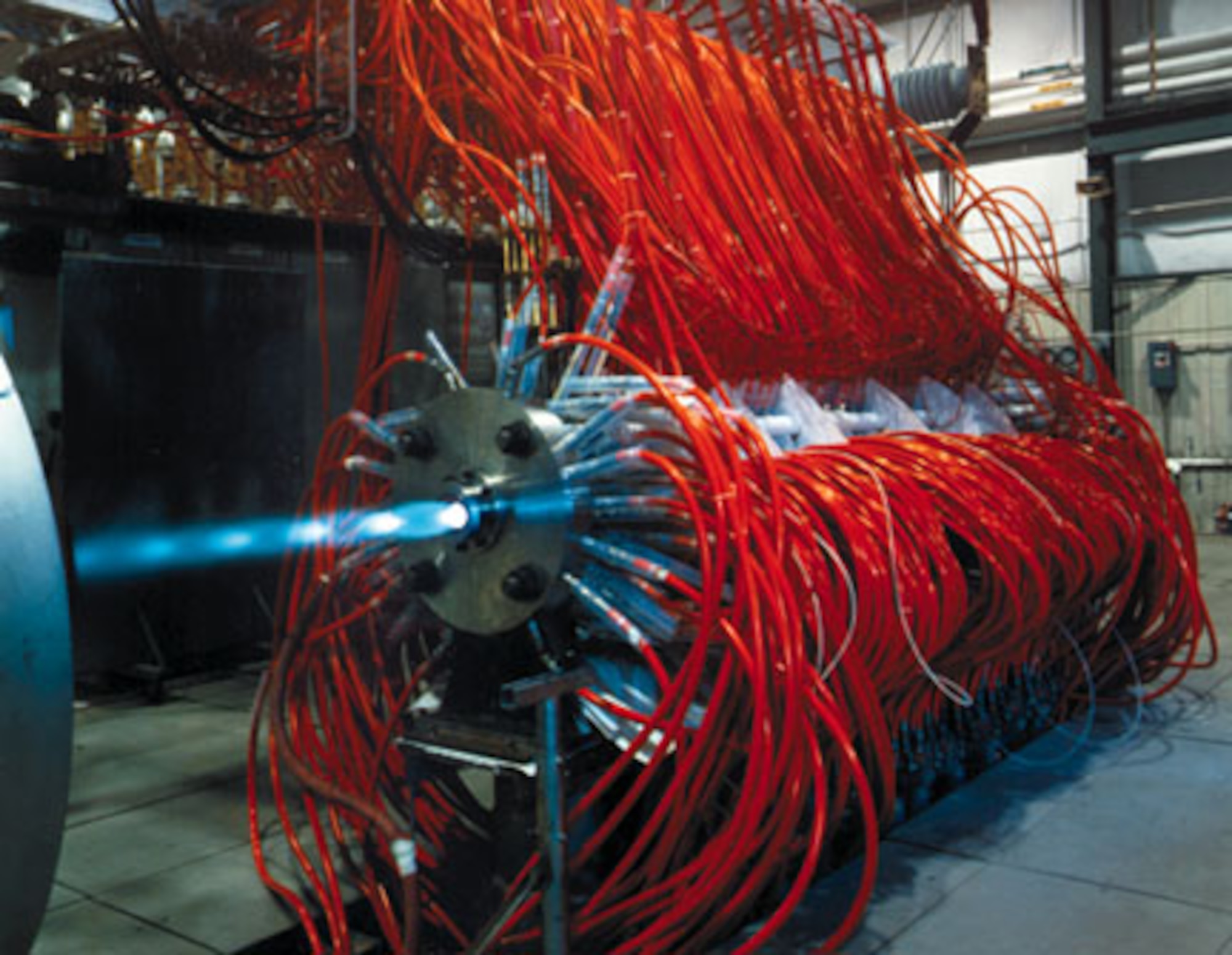

HEAT-H1.  The HEAT-H1 Test Unit is an advanced performance arc-heated facility providing high-pressure, high-enthalpy test conditions for qualification of thermal protection materials, nosetips, and electromagnetic apertures and structures for hypersonic missiles, space access systems, and re-entry vehicles.

 The test unit utilizes a segmented arc heater with 200 electrically isolated segments which form the heater plenum.  The unique segmented construction, with the anode and cathode at opposite ends of the plenum, allows the arc to be held at a fixed length to optimize heater efficiency, total enthalpy at high pressure, and flow uniformity.  Normal operating conditions for the heater are about 20,000 volts and 1,200 amps, providing heater chamber pressures up to 120 atm at high stagnation enthalpies.

The H1 test cell is equipped with a multiple-strut, programmable rotary model injection system capable of positioning one to seven test models sequentially into the test free jet for preset dwell times.  Transient calibration probes of various configurations are available to define heat flux and pressure conditions inside the test jet.

HEAT-H2.  The HEAT-H2 Test Unit is an arc-heated aerothermal tunnel providing high-enthalpy flow at high Mach numbers and dynamic pressures simulating hypersonic flight at pressure altitudes up to 120 atm.  H2 utilitzes an N-4 Huels-type arc heater to generate high-temperature, high-pressure air for expansion through a hypersonic nozzle into the evacuated test cell.

The combination of the arc heater driver, various nozzle/throat combinations, the evacuated test cell, and exhauster makes possible high-enthalpy flows at Mach numbers from 5 to 9.  Direction and distribution of the injected air can be selected to optimize the enthalpy distribution across the flow to match specific test requirements.  Run times of 20 minutes or longer are available in HEAT-H2 for selected operating conditions.

HEAT-H3.  The HEAT-H3 Test Unit was developed to provide a large, high-pressure arc facility with sufficient size and performance for testing of full- and large-scale missile and re-entry samples and structures.  H3 is a 12-module, 50-percent geometric scale-up of H1.  The test unit is designated to operate at over twice the available power level and mass flow of H1, with operational pressure up to 150 atm.


AEDC ARC-HEATED TEST FACILITIES

 Facility Name

 HEAT-H1

 HEAT-H2

 HEAT-H3

 Facility Type

 Atm. Exhaust (Freejet)

Subatm. Exhaust

Atm. Exhaust (Freejet)

 Maximum Run Time (minute)

 1-2

 3-30

1-2

 Nozzle Mach Number

 1.8 to 3.5

 3.4 to 8.3

 1.8 to 3.5

 Nozzle Exit Diamater (inches)

 0.75 to 3.0

 5.0 to 24.0

 1.2 to 4.5

 Stagnation Pressure (atm)

 Up to 100

 Up to 12

 Up to 115

 Stagnation Enthalpy* (Btu/lbm)

 600-8,500

 1,200-5,500

 600-8,500

 Mass Flow Rate (lbm/sec)

 0.5-8

 2-10

 3-25

 Facility Power (NW)

 Up to 30

Up to 45

Up to 70

*Stagnation enthalpy inferred from stagnation heat flux and pressure measurements by the Fay-Ridell method.

LANDING GEAR TEST FACILITY

PhotoDashboard

This stockade is one of the few structures still standing on what was once Camp Forrest, a site now occupied by Arnold Air Force Base, headquarters of Arnold Engineering Development Complex. Camp Forrest, located near Tullahoma, Tenn., was one of the Army’s largest training bases during World War II and an active Army post between 1941 and 1946. (U.S. Air Force photo by Keith Thornburgh)

Overview

The Landing Gear Test Facility (LGTF) has been a cornerstone of aerospace testing at Wright-Patterson Air Force Base since 1942, dedicated to ensuring the reliability and performance of aircraft landing gear systems.

Throughout its history, the LGTF has supported the warfighter by providing critical data to enhance the safety and effectiveness of landing gear, wheels, tires, and brakes, directly contributing to the mission of the United States Department of Defense. In addition to its military focus, the LGTF offers comprehensive testing services to commercial entities, employing world-unique test machines capable of simulating real-life conditions with unparalleled accuracy.

Guided by the core values of IntegrityService, and Excellence, the LGTF consistently delivers precise and dependable data to both military and commercial partners.

Test Machine Capabilities



 Overall System Specifications:

Max Speed: 250 mph
Max Acceleration: 21 ft/s2
Inertial Equivalent: 2,445 - 20,063 lbs.
Max Kinetic Energy: 41,750,000 ft-lbs.



South Carriage Specifications:

Max Load: 40,000 lbs.
Max Torque: 375,000 in-lbs.
Max Tire Size: 64 in



North Carriage Specifications:

Max Load: 25,000 lbs.
Max Torque: 72,000 in-lbs.
Max Tire Size: 48 in

Overall System Specifications:

Max Speed: 350 mph
Max Acceleration: 24 ft/s2

South Carriage Specifications:

Max Load: 150,000 lbs.
Max Yaw: ± 20°
Max Camber: ± 20°

North Carriage Specifications:

Max Load: 100,000 lbs.



Overall System Specifications:

Max Speed: 200 mph
Max Acceleration: 2 ft/s2
Inertial Equivalent: 10,147 - 162,987 lbs.
Max Kinetic Energy: 205,000,000 ft-lbs.

South Carriage Specifications:

Max Load: 301,500 lbs.
Max Brake Torque: 5,800,000 in-lbs.

Overall System Specifications:

Max Speed: 250 mph
Max Acceleration: 16 ft/s2
Max Vertical Load: 150,000 lbs.
Max Yaw: ± 20°
Max Camber: ± 10°

Overall System Specifications:

Max Compressive Load: 3,000,000 lbs.
Max Tension Load: 1,000,000 lbs.
Max Stroke: 60 in
Max Height: 28 ft
Max Width: 10 ft
Platen Size: 60.5 x 96 in

Overall System Specifications:

Max Vertical Load: 75,000 lbs.
Max Side Load: 30,000 lbs.
Max Yaw: ± 90°
Max Camber: ± 10°
Max Tire Size: 56 in.
Table Length: 20 ft.
Max Travel Speed: 3 in/s
Roll Distance: 217 in



Overall System Specifications:

Below-grade safety enclosure
Dimensions: 72 x 120 x 126 in.
Water Pressure Limit: 5,000 psi
Rate of Inflation: 10 psi/min

Drop Tower #1

Load Range: 750 - 3,600 lbs.
Wing Lift: 200 - 3,600 lbs.



Drop Tower #2

Load Range: 2,000 - 10,300 lbs.
Wing Lift: 200 - 10,300 lbs.



Drop Tower #3

Load Range: 6,500 - 50,000 lbs.
Wing Lift: 200 - 35,000 lbs.



Drop Tower #4

Load Range: 35,000 - 150,000 lbs.
Wing Lift: 200 - 150,000 lbs.

Load frame that accommodates multiple hydraulic cylinders to provide controlled forcing and operational stresses to test objects in all 6 axes.
