AEROPROPULSION SYSTEMS TEST FACILITY

The Aeropropulsion Systems Test Facility at the Air Force's Arnold Engineering Development Center, located at the Arnold Air Force Base in southern Middle Tennessee, is a unique national facility designed to test aircraft propulsion systems in true mission environments without leaving the ground.


FACILITY DESCRIPTION
ASTF is part of AEDC's Engine Test Facility, which has established the center as the USAF center of expertise in turbine engine testing. Located on a 57-acre site, ASTF is an open-circuit facility with two test cells, designated C-1 and C-2, each 28-feet in diameter and 85-feet long. For comparison, the next largest ETF test cell is 20-feet in diameter and 60-feet long.

The facilities unique features permit data to be acquired in ground testing that was previously available only after extensive flight testing.

ASTF provides the United States with the unique test capability of simulating flight conditions at altitudes up to 75,000 feet, at speeds up to Mach 2.3, for engines rated up to 100,000 pounds of thrust.

The air supply compressors can provide up to 1,500 pounds of air per second (more than one-million standard cubic feet per minute) into the test cell to simulate airspeeds up to 1,800 miles per hour. The compressors, totaling 215,000 horsepower, are started by one of the largest variable frequency starting systems in the world. An additional 960 pounds per second of airflow is available by drawing outside air directly into the C-2 test cell.

Providing properly conditioned air to the propulsion systems to simulate supersonic flight conditions calls into play the largest air heaters in the world. These heaters can burn either diesel fuel or waste aviation fuel and generate enough heat (one billion BTUs per hour) to raise the temperature of the airflow to a maximum of 450 degrees Fahrenheit (350 degrees at the test cell).

Exhaust gases can reach temperatures of nearly 3,500 degrees Fahrenheit and must be cooled before they go through the exhaust machinery and are vented into the atmosphere. In its current configuration, initial cooling is done by direct-contact water spray, which reduces the temperature to 200 degrees Fahrenheit. Another water spray cools and cleans the exhaust gas to less than 150 degrees Fahrenheit before it enters the exhaust compressors.  Cooling of the exhaust gases requires up to 25,000 gallons of water per minute. Total facility cooling water capability is 387,000 gallons per minute. Cooling towers are used to cool and recirculate a three-million gallon, closed-circuit reservoir of water that is used during testing operations.


WORKLOAD
The Pratt & Whitney F119 power plant for the F-22A Raptor Air Dominance Fighter has been extensively tested in ASTF since 1989. The P&W F135 primary engine and the GE/Rolls-Royce Fighter Engine Team F136 alternate engine for the F-35 Lighting II Joint Strike Fighter will be testing at AEDC for the next several years.

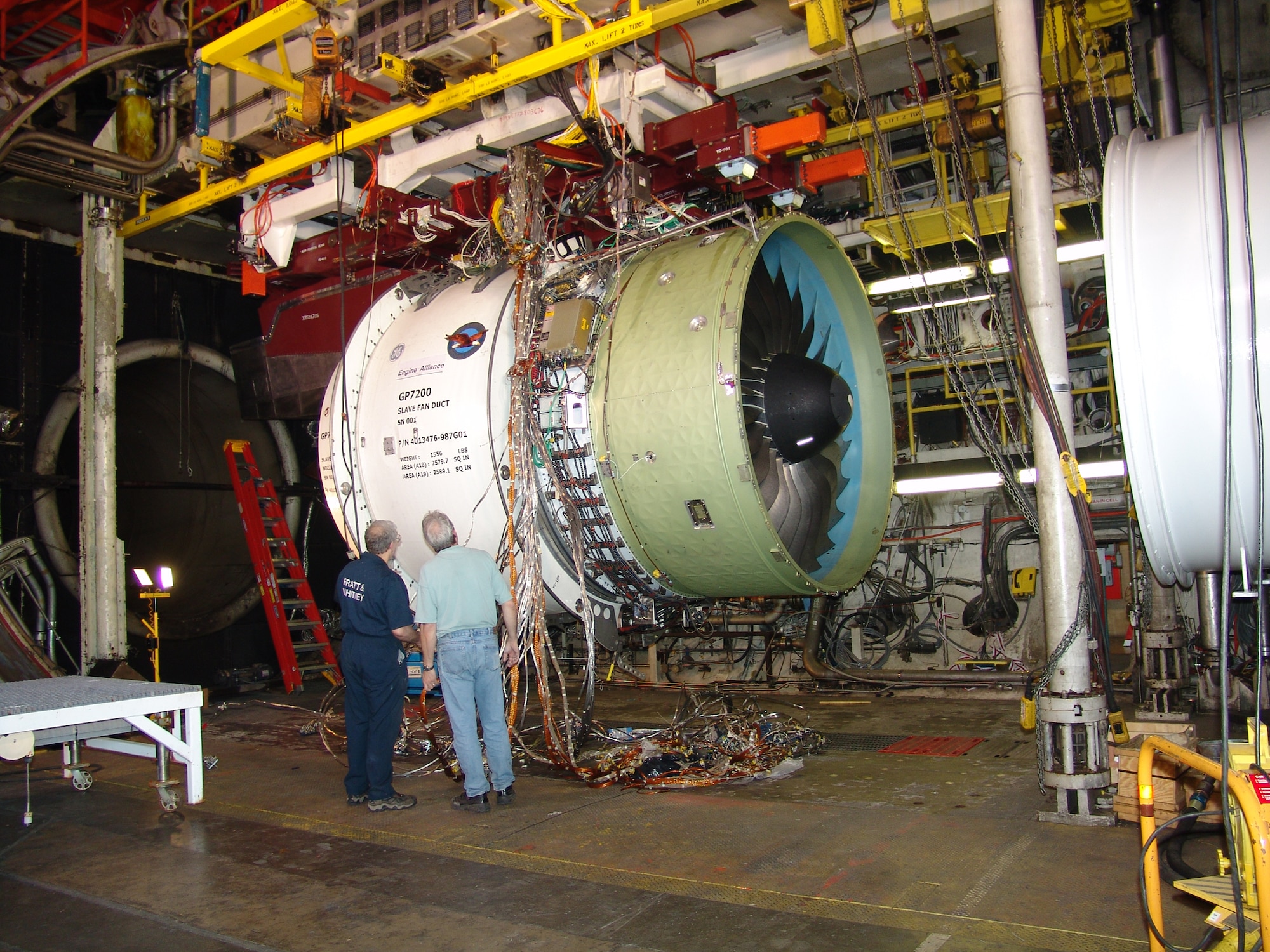

In addition to testing military propulsion system, ASTF has been instrumental in making America more competitive in the international market.  The congressionally enacted law allowed  U. S. government agencies and facilities to open their doors and technology to American industry. The P&W 4000 series engines for the Boeing 777 was tested in the 1990's. Recent commercial engine tests include the GE P&W Engine Alliance GP 7200 for the Airbus A380 to determine the engine operational characteristics and qualify it for flight passenger airliner and the P&W 6000 engine.

In addition, the Rolls-Royce Trent 800 engine for the Boeing 777, the Trent 900 for the Airbus A380, and the Trent 1000 for the Boeing 787 have also been tested at ASTF.  Recently, the Ishikawajima-Harima Heavy Industries XF7-10 engine was tested for the Japan Ministry of Defense through the USAF Foreign Military Sales office.  The IHI XF7-10 is used in the Kawasaki P-1 maritime patrol aircraft which is the first Japanese locally designed and built combat aircraft since World War II.


FACILITY BACKGROUND
Identified by a joint NASA and Department of Defense Aeronautics and Astronautics Coordinating Board in the 1960s as essential to the nation, ASTF was designed for testing integrated, full-scale propulsion systems under simulated flight conditions that are more realistic than ever before. Construction begun in 1977, took seven years to complete and involved as many as 1,000 workers. Following integration and activation, the facility reached initial operational capability in September 1985.

LANDING GEAR TEST FACILITY

PhotoDashboard

This stockade is one of the few structures still standing on what was once Camp Forrest, a site now occupied by Arnold Air Force Base, headquarters of Arnold Engineering Development Complex. Camp Forrest, located near Tullahoma, Tenn., was one of the Army’s largest training bases during World War II and an active Army post between 1941 and 1946. (U.S. Air Force photo by Keith Thornburgh)

Overview

The Landing Gear Test Facility (LGTF) has been a cornerstone of aerospace testing at Wright-Patterson Air Force Base since 1942, dedicated to ensuring the reliability and performance of aircraft landing gear systems.

Throughout its history, the LGTF has supported the warfighter by providing critical data to enhance the safety and effectiveness of landing gear, wheels, tires, and brakes, directly contributing to the mission of the United States Department of Defense. In addition to its military focus, the LGTF offers comprehensive testing services to commercial entities, employing world-unique test machines capable of simulating real-life conditions with unparalleled accuracy.

Guided by the core values of IntegrityService, and Excellence, the LGTF consistently delivers precise and dependable data to both military and commercial partners.

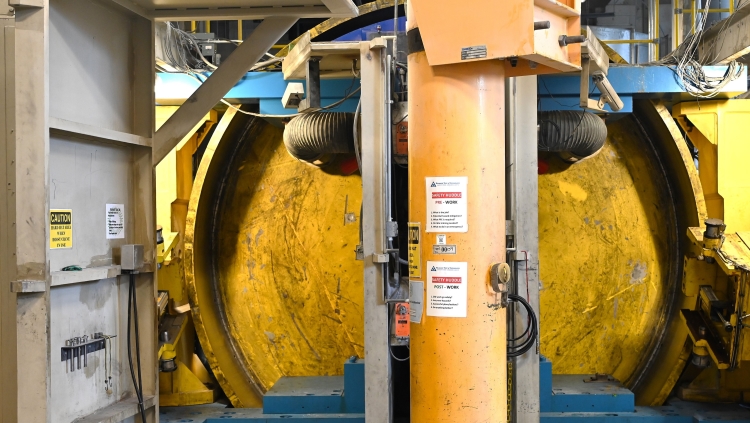

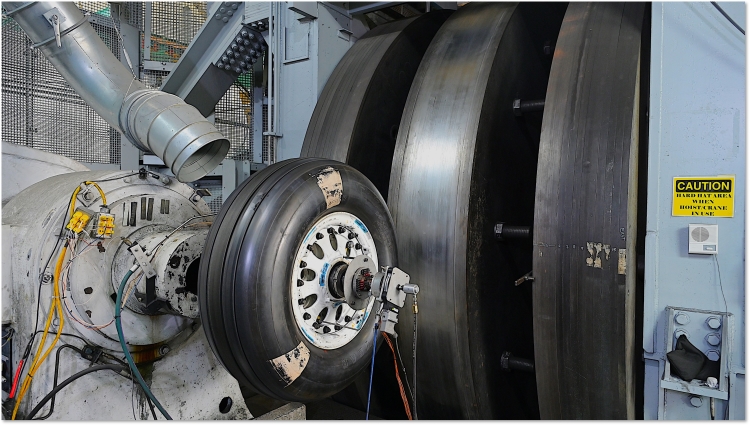

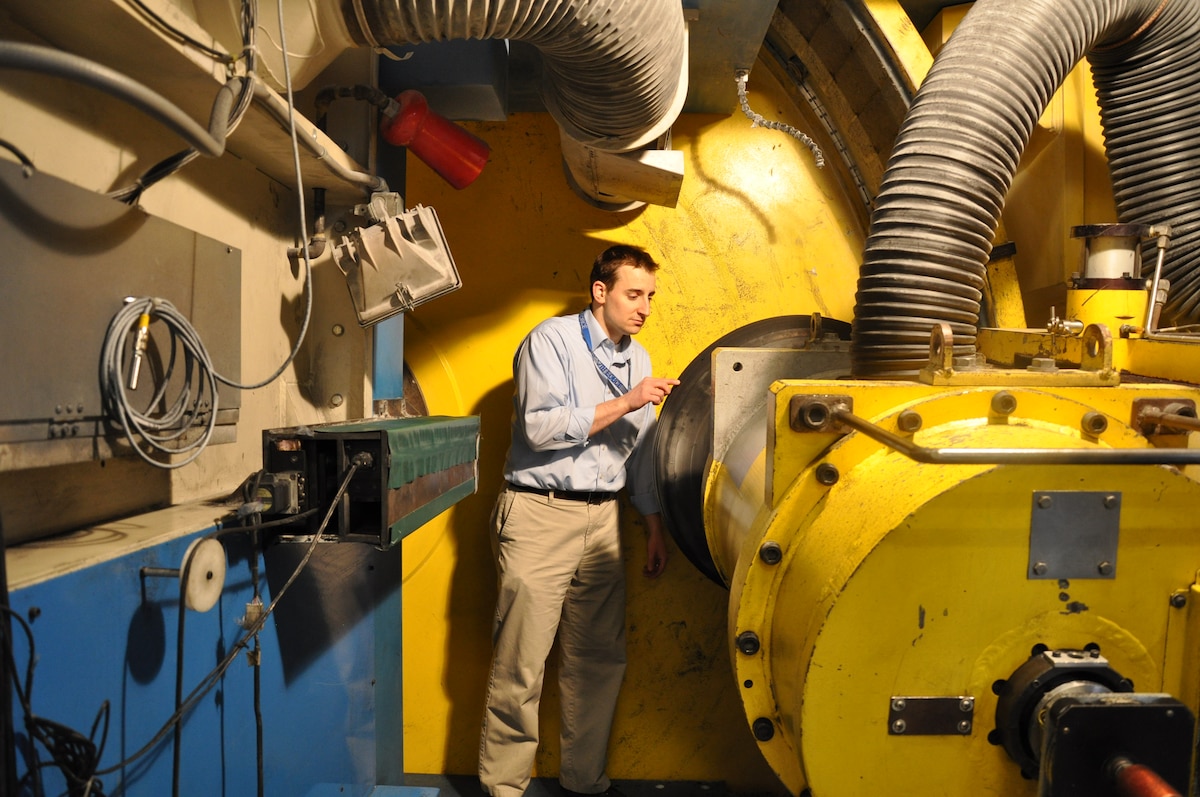

Test Machine Capabilities



 Overall System Specifications:

Max Speed: 250 mph
Max Acceleration: 21 ft/s2
Inertial Equivalent: 2,445 - 20,063 lbs.
Max Kinetic Energy: 41,750,000 ft-lbs.



South Carriage Specifications:

Max Load: 40,000 lbs.
Max Torque: 375,000 in-lbs.
Max Tire Size: 64 in



North Carriage Specifications:

Max Load: 25,000 lbs.
Max Torque: 72,000 in-lbs.
Max Tire Size: 48 in

Overall System Specifications:

Max Speed: 350 mph
Max Acceleration: 24 ft/s2

South Carriage Specifications:

Max Load: 150,000 lbs.
Max Yaw: ± 20°
Max Camber: ± 20°

North Carriage Specifications:

Max Load: 100,000 lbs.



Overall System Specifications:

Max Speed: 200 mph
Max Acceleration: 2 ft/s2
Inertial Equivalent: 10,147 - 162,987 lbs.
Max Kinetic Energy: 205,000,000 ft-lbs.

South Carriage Specifications:

Max Load: 301,500 lbs.
Max Brake Torque: 5,800,000 in-lbs.

Overall System Specifications:

Max Speed: 250 mph
Max Acceleration: 16 ft/s2
Max Vertical Load: 150,000 lbs.
Max Yaw: ± 20°
Max Camber: ± 10°

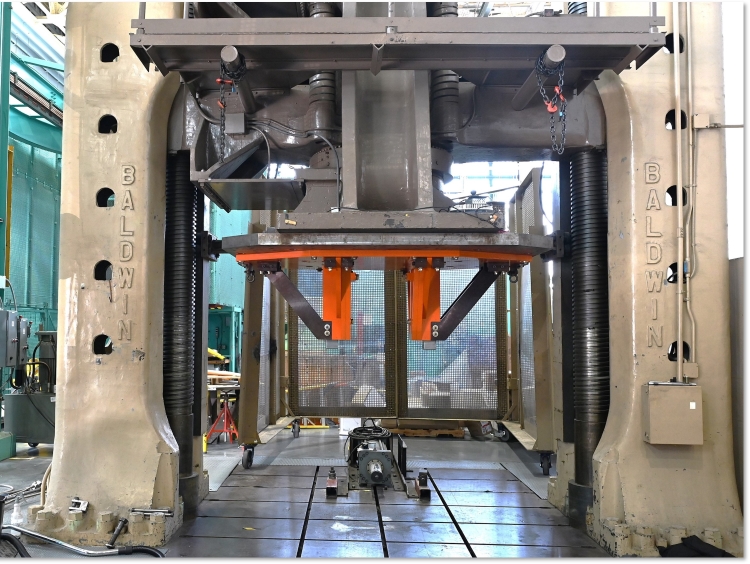

Overall System Specifications:

Max Compressive Load: 3,000,000 lbs.
Max Tension Load: 1,000,000 lbs.
Max Stroke: 60 in
Max Height: 28 ft
Max Width: 10 ft
Platen Size: 60.5 x 96 in

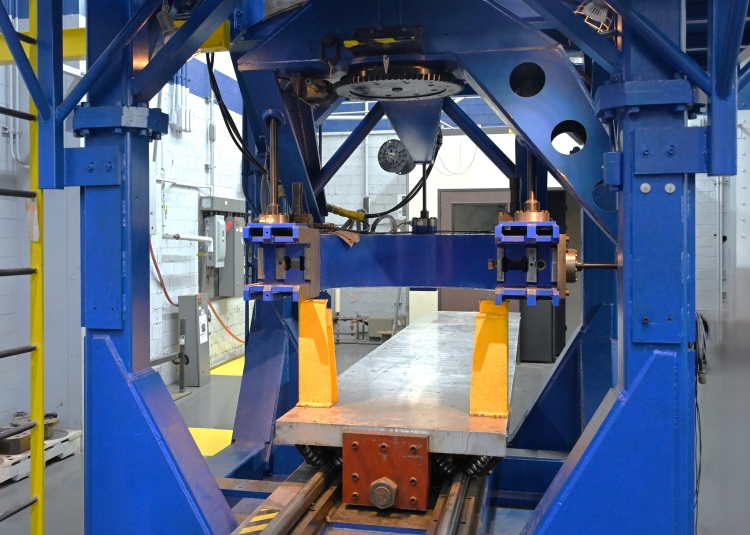

Overall System Specifications:

Max Vertical Load: 75,000 lbs.
Max Side Load: 30,000 lbs.
Max Yaw: ± 90°
Max Camber: ± 10°
Max Tire Size: 56 in.
Table Length: 20 ft.
Max Travel Speed: 3 in/s
Roll Distance: 217 in

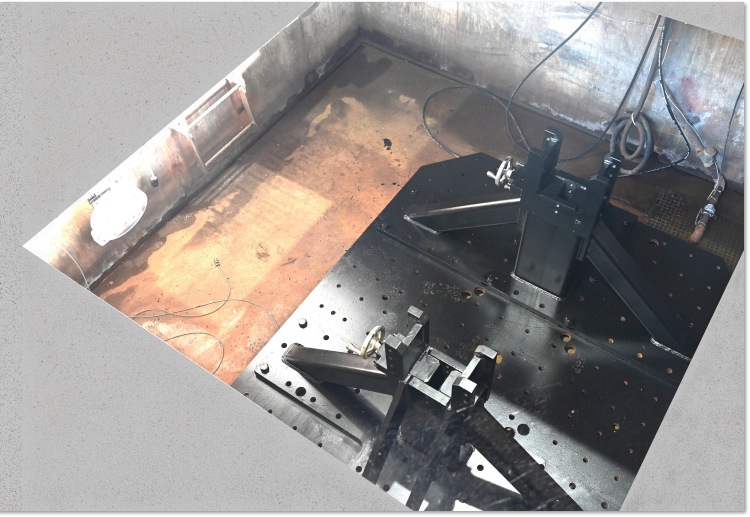

Overall System Specifications:

Below-grade safety enclosure
Dimensions: 72 x 120 x 126 in.
Water Pressure Limit: 5,000 psi
Rate of Inflation: 10 psi/min

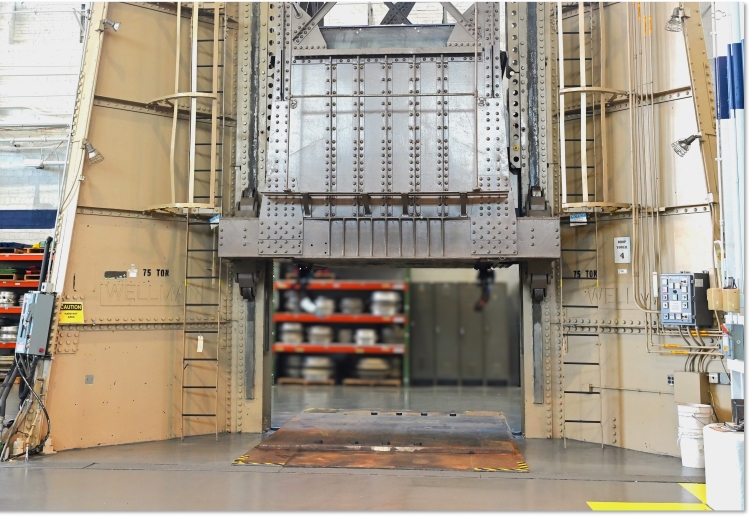

Drop Tower #1

Load Range: 750 - 3,600 lbs.
Wing Lift: 200 - 3,600 lbs.



Drop Tower #2

Load Range: 2,000 - 10,300 lbs.
Wing Lift: 200 - 10,300 lbs.



Drop Tower #3

Load Range: 6,500 - 50,000 lbs.
Wing Lift: 200 - 35,000 lbs.



Drop Tower #4

Load Range: 35,000 - 150,000 lbs.
Wing Lift: 200 - 150,000 lbs.

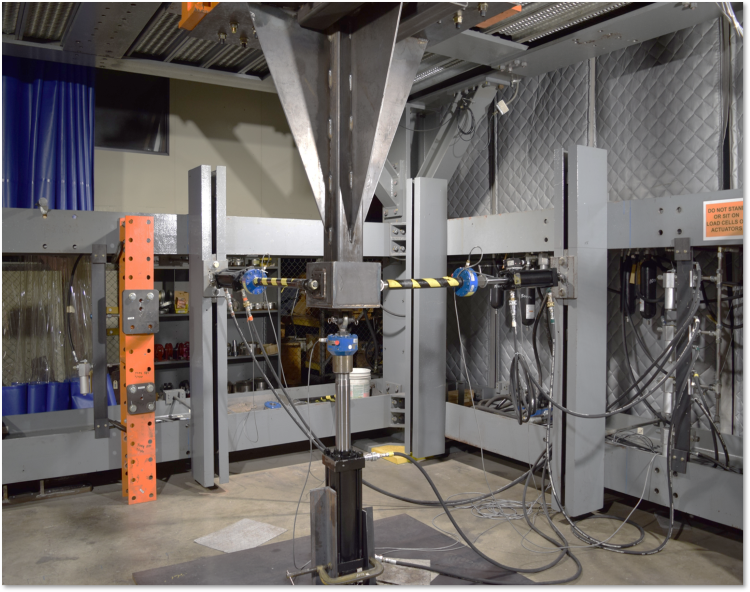

Load frame that accommodates multiple hydraulic cylinders to provide controlled forcing and operational stresses to test objects in all 6 axes.
