7V SPACE CHAMBER

The 7V Space Chamber is a state-of-the-art deep space environment simulation test facility designed to test high performance interceptors and surveillance sensors at the conditions of deep space (20 K background). A spectral coverage can be provided over the visible to the LWIR spectral range and a radiometric calibration monitor system is located inside the chamber to allow accurate in-situ calibration of the 7V source systems that is traceable to the National Institute of Standards and Technology.

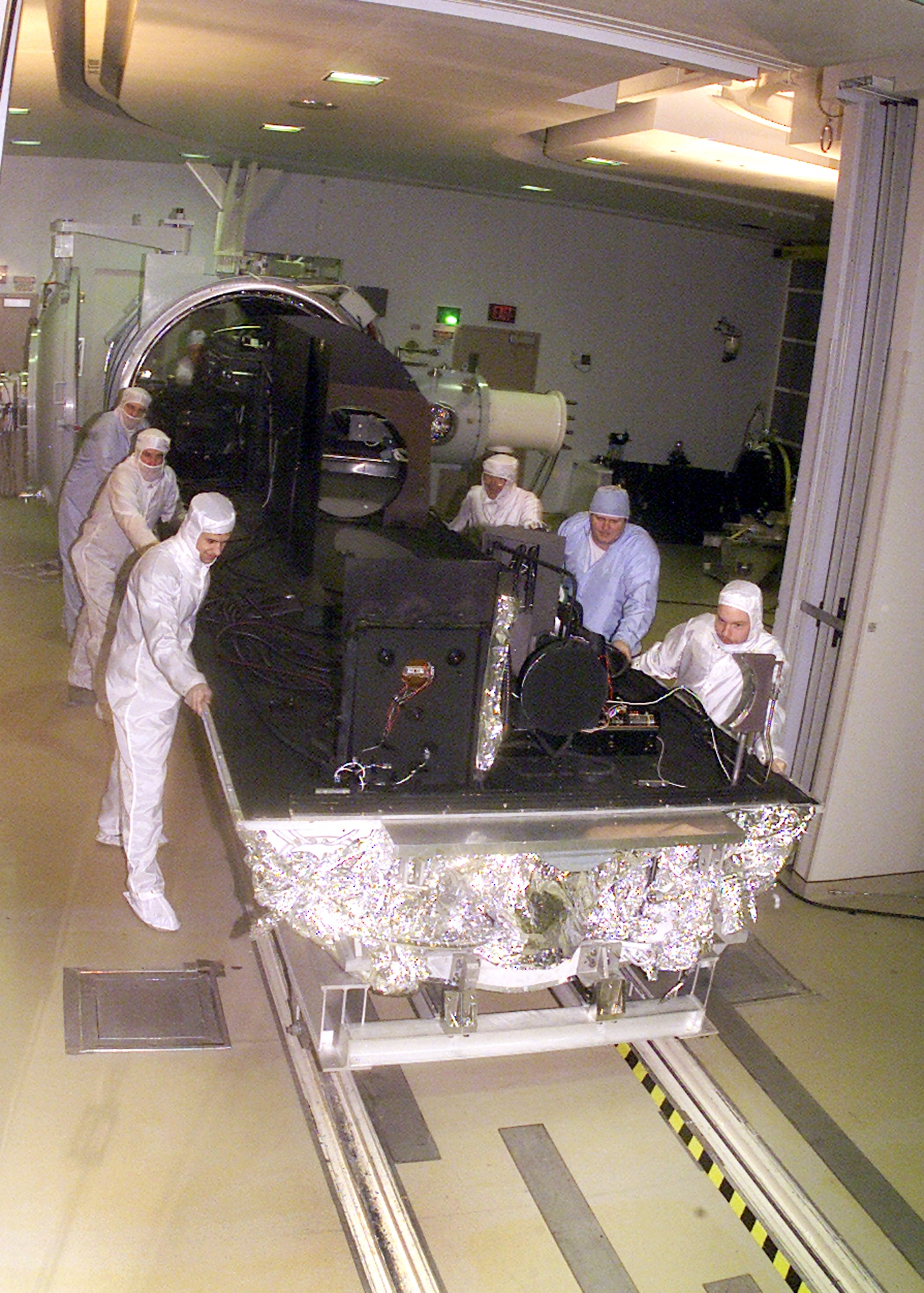

Chamber 7V is configured to provide complete characterization and radiometric calibration of an infrared (IR) sensor in a single test facility and has the capability to perform all major categories of sensor characterization (flood source, point source, polarized source, spectral calibration, and mission simulation) during a single test entry. The chamber shares vehicle handling and target systems as well as support infrastructure with the 10V Space Chamber.

An assortment of source systems allows evaluation of sensor performance over a wide range of target conditions. A 256x256 InSb camera, referred to as the Alignment Monitor System, is mounted on the chamber to provide independent source and background evaluation and target position calibration. The facility consists of a 7-foot-diameter by 21-foot-long chamber containing a full gaseous helium thermal shroud and an optically clean vacuum allows vibration isolation of the optical bench and all optical elements. The chamber is surrounded by a Class 100 Clean Room with an adjoining Class 1000 build-up area.

The 7V Chamber has been used to support testing of airborne sensors, space-based sensors, and interceptor seekers. Since 1994, AEDC has performed more than 35 facility characterizations and sensor tests in the upgraded 7V Chamber.

Capabilities

7V Space Chamber Mission: Characterize and Calibrate Sensors in Simulated Operational Environments

- Chamber is 7-foot diameter x 21-foot long - NIST traceable radiometric calibration to less than 3% uncertainty
- Antechamber is 7-foot diameter x 8-foot long - Diffraction-limited 50-cm optics, 1.4 deg FOV, 5μ rad vibration stability
- 20 K cryogenically-cooled liner and optical bench provide low IR background - Class 1000 Class clean room, dedicated control room
- Simulated altitudes beyond 200 miles (less than 10-7 torr) - Complete sensor characterization can be performed during a single test entry
- High fidelity static and dynamic multi-target simulation - Extensive sensor data processing and analysis capability
- In-situ source calibration and diagnostic capability - 35 years of sensor test experience in more than 45 test programs

LANDING GEAR TEST FACILITY

Overview

The Landing Gear Test Facility (LGTF) has been a cornerstone of aerospace testing at Wright-Patterson Air Force Base since 1942, dedicated to ensuring the reliability and performance of aircraft landing gear systems.

Throughout its history, the LGTF has supported the warfighter by providing critical data to enhance the safety and effectiveness of landing gear, wheels, tires, and brakes, directly contributing to the mission of the United States Department of Defense. In addition to its military focus, the LGTF offers comprehensive testing services to commercial entities, employing world-unique test machines capable of simulating real-life conditions with unparalleled accuracy.

Guided by the core values of Integrity, Service, and Excellence, the LGTF consistently delivers precise and dependable data to both military and commercial partners.

Test Machine Capabilities



 Overall System Specifications:

Max Speed: 250 mph
Max Acceleration: 21 ft/s2
Inertial Equivalent: 2,445 - 20,063 lbs.
Max Kinetic Energy: 41,750,000 ft-lbs.


South Carriage Specifications:

Max Load: 40,000 lbs.
Max Torque: 375,000 in-lbs.
Max Tire Size: 64 in


North Carriage Specifications:

Max Load: 25,000 lbs.
Max Torque: 72,000 in-lbs.
Max Tire Size: 48 in

Overall System Specifications:

Max Speed: 350 mph
Max Acceleration: 24 ft/s2

South Carriage Specifications:

Max Load: 150,000 lbs.
Max Yaw: ± 20°
Max Camber: ± 20°

North Carriage Specifications:

Max Load: 100,000 lbs.



Overall System Specifications:

Max Speed: 200 mph
Max Acceleration: 2 ft/s2
Inertial Equivalent: 10,147 - 162,987 lbs.
Max Kinetic Energy: 205,000,000 ft-lbs.

South Carriage Specifications:

Max Load: 301,500 lbs.
Max Brake Torque: 5,800,000 in-lbs.

Overall System Specifications:

Max Speed: 250 mph
Max Acceleration: 16 ft/s2
Max Vertical Load: 150,000 lbs.
Max Yaw: ± 20°
Max Camber: ± 10°

Overall System Specifications:

Max Compressive Load: 3,000,000 lbs.
Max Tension Load: 1,000,000 lbs.
Max Stroke: 60 in
Max Height: 28 ft
Max Width: 10 ft
Platen Size: 60.5 x 96 in

Overall System Specifications:

Max Vertical Load: 75,000 lbs.
Max Side Load: 30,000 lbs.
Max Yaw: ± 90°
Max Camber: ± 10°
Max Tire Size: 56 in.
Table Length: 20 ft.
Max Travel Speed: 3 in/s
Roll Distance: 217 in



Overall System Specifications:

Below-grade safety enclosure
Dimensions: 72 x 120 x 126 in.
Water Pressure Limit: 5,000 psi
Rate of Inflation: 10 psi/min

Drop Tower #1

Load Range: 750 - 3,600 lbs.
Wing Lift: 200 - 3,600 lbs.


Drop Tower #2

Load Range: 2,000 - 10,300 lbs.
Wing Lift: 200 - 10,300 lbs.


Drop Tower #3

Load Range: 6,500 - 50,000 lbs.
Wing Lift: 200 - 35,000 lbs.


Drop Tower #4

Load Range: 35,000 - 150,000 lbs.
Wing Lift: 200 - 150,000 lbs.

Load frame that accommodates multiple hydraulic cylinders to provide controlled forcing and operational stresses to test objects in all 6 axes.
