ARNOLD AIR FORCE BASE, Tenn. --  Until recently, getting new parts for the laser camera system at AEDC's Hypervelocity Ballistic Range G was a lot like antique shopping.

In a time when it's hard to buy a new camera that isn't digital, workers at Range G have been stretching their resources to keep their film-based camera equipment viable.

But now, after six years of planning, they have a new digital system in place that brings them into the 21st century and makes the process of capturing high-velocity images a more amicable process for both them and the base's test customers.

The new system is more of a necessity than a luxury, according to instrumentation engineer Ed Erickson.

"The cameras had been around about 40 years, and the system as it existed up until now was around about 20 years," Erickson said. "Needless to say, spare parts aren't available for it anymore."

Range G is used to conduct kinetic energy lethality and impact phenomenology tests. Its two-stage gas-gun launcher is the largest in the United States, firing projectiles down a 930-foot-long instrumented tank.

Impact testing and examining aerodynamic features of projectiles are primary functions of the tunnel, and having a camera capable of capturing an image as the projectile flies by is important.

Erickson started looking for funding to put a new system in place in 2005 - which was the last chance he had to get spare parts for the old system. The man who made illumination lamps for the laser system was retiring, so he stocked up with as many lamps as he could get.

The old camera system was a box-shaped film camera. Because projectiles fired through the tank travel as fast as 18,000 feet per second - six times faster than a bullet - a flashbulb isn't capable of illuminating the tunnel for a photo. A laser is used instead.

The old cameras' laser systems used a ruby laser that sat inside a custom high-intensity lamp, which had a water cooling system and a 20,000 volt power supply. The old rig was the size of a steamer trunk and because of the way it was built, a series of mirrors had to reflect the laser beam from one side of the box into the tank. If a customer wanted a photograph from a different section of the tank, it could take a full day to reposition the camera.

The ruby laser used in the system isn't available anymore, and there's only one place left selling the image intensifiers used in the camera to get a sharper image.

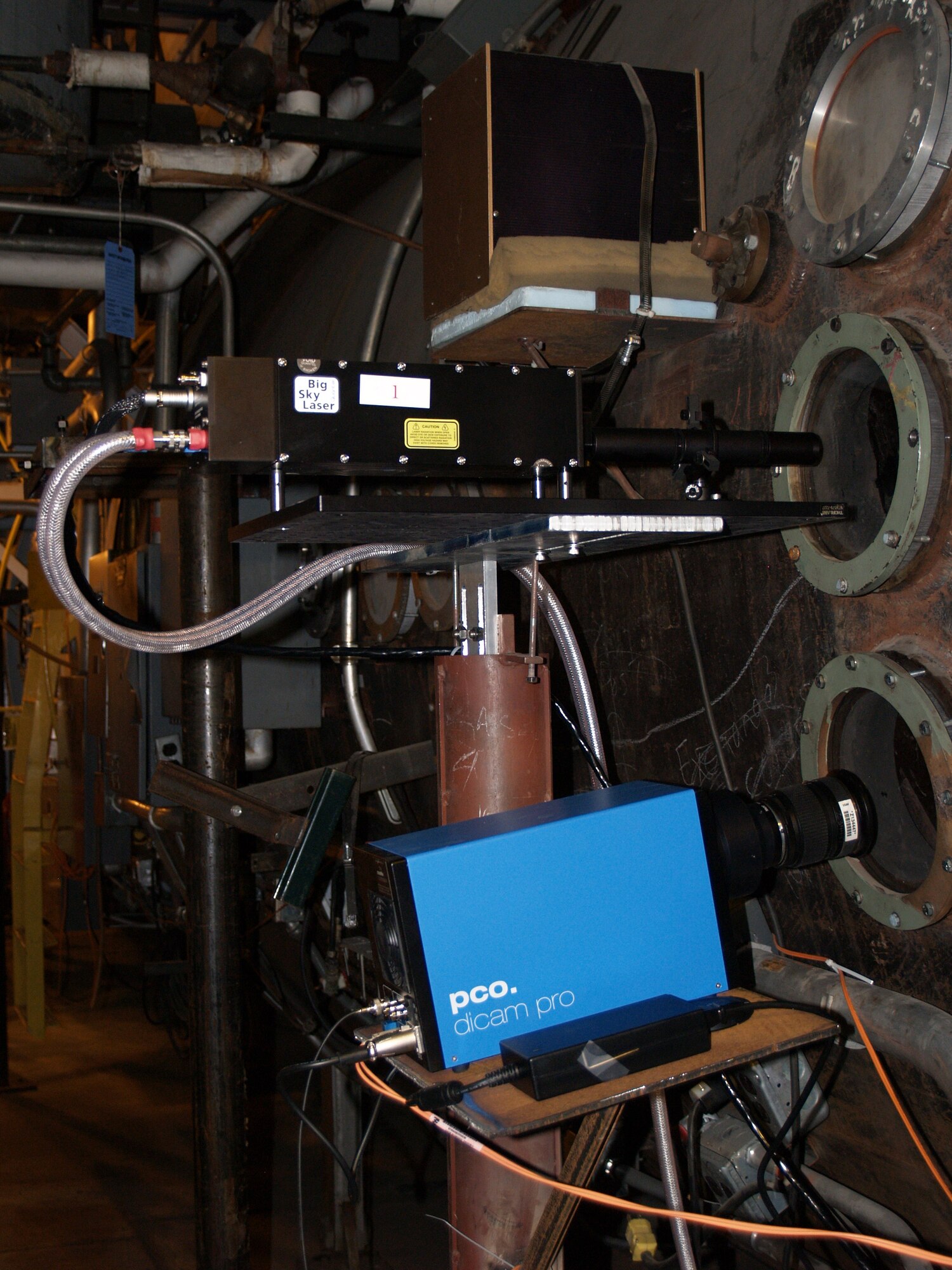

The new systems are "everything we need in a compact package," according to Erickson. One camera and laser system is about the size of a briefcase, with the laser capable of firing directly into the tank. If it needs to be moved, the new system can be repositioned and ready to go in about two hours.

"Before, I'd tell Ed or some of the other folks I wanted to move the laser camera," said project engineer David Woods. "They'd look down and they'd just start shaking their heads. Now it's not so bad."

The new digital imaging system is also much faster than the film system, according to Erickson. They have a photo of the projectile upstairs from the range as soon as the camera snaps the picture and stores it. It's instant viewing as opposed waiting for the chance to go into the facility and physically retrieve the film.

"When they fire the launcher, carbon monoxide is generated," Erickson said. "Hydrogen could leak out of the tank. They have to take steps to purge the tank and make the downstairs safe for a person to re-enter. So it takes about an hour and a half to two hours before the service tunnel is ready for entry. And then it would take another half hour to develop the film."

Woods likes another aspect of the digital system: it gets rid of the possibility that the film could be accidentally dropped or exposed to light, destroying the data.

"The thing I like about this system is as soon as it's done, it immediately gets transferred into memory and saved, and we don't have to worry about what happens if there are extenuating circumstances," he said. "We have our data."

The range cameras are ready to go; a final checkout confirmed readiness June 8. A customer test is lined up for October. By then, Range G workers may be able to use the equipment they have to measure the attitude and positions of a projectile within a 3-D volume.

"I expect that as we continue to move forward with using these things on our test shots, we will continue to improve," Woods said. "These images are pretty good but there are some things I'd like to see more clearly, and that's just the sort of thing that's going to come with time as we continue to use the systems."
