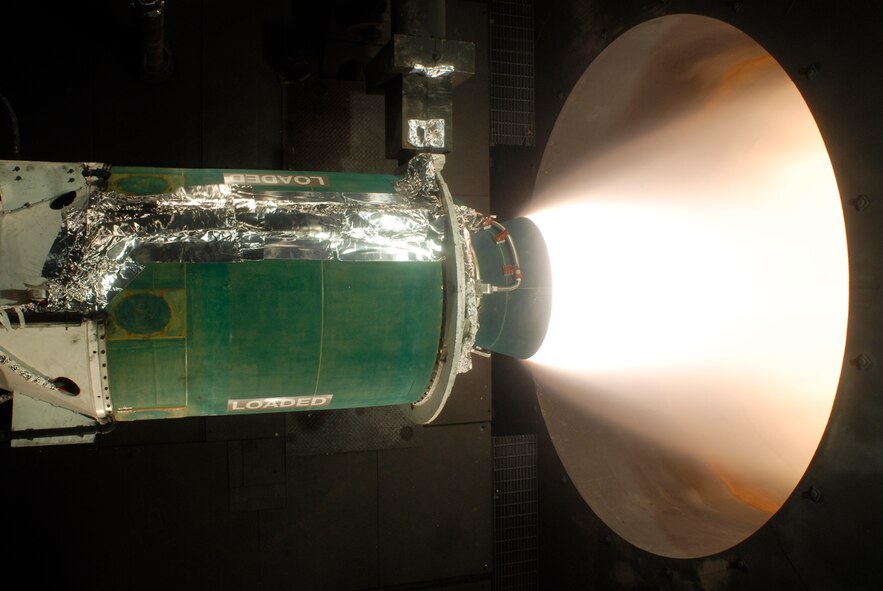

A Minuteman III Stage 3 motor undergoes simulated altitude testing in AEDC’s J-6 Large Rocket Test Facility. It was the second of two Production Quality Assurance (PQA) Minuteman rocket motors scheduled for testing in fiscal year 2011. These tests support Hill AFB and the Minuteman Solid Rocket Motor Warm Line (SRMWL) program. The SRMWL program is intended to sustain and maintain the unique manufacturing and engineering infrastructure necessary to preserve the Minuteman III solid rocket motor production capability. The customer will compare the motors performance parameters to the results of previous Production Quality Assurance (PQA) static tests and verify that the motors meet the requirements in the Prime Item Fabrication Specification (PIFS). (Photo by Rick Goodfriend)


AEDC team tests Minuteman rocket motor in J-6

A Minuteman III Stage 3 motor undergoes simulated altitude testing in AEDC’s J-6 Large Rocket Test Facility. It was the second of two Production Quality Assurance (PQA) Minuteman rocket motors scheduled for testing in fiscal year 2011. These tests support Hill AFB and the Minuteman Solid Rocket Motor Warm Line (SRMWL) program. The SRMWL program is intended to sustain and maintain the unique manufacturing and engineering infrastructure necessary to preserve the Minuteman III solid rocket motor production capability. The customer will compare the motors performance parameters to the results of previous Production Quality Assurance (PQA) static tests and verify that the motors meet the requirements in the Prime Item Fabrication Specification (PIFS). (Photo by Rick Goodfriend)

Related Imagery
Members of the J-6 Large Rocket Motor Test Facility test team perform an inspection of the solid propellant rocket motor for the Minuteman III intercontinental ballistic missile prior to testing at the facility. (U.S. Air Force photo/Rick Goodfriend)
James Brooks, ATA rocket test manager, pictured, starts the final countdown for the 2,500th solid rocket motor test and last test he will be a part of at J-6 before retiring from AEDC. (Photo by Rick Goodfriend)
Members of AEDC’s Space Threat Assessment Testbed (STAT) Test & Evaluation team install a microsatellite in the STAT chamber before conducting a test. (Photo by Jacqueline Cowan)
A technology project is taking place in Range G at AEDC to prepare for advanced hypersonic testing. Pictured here is the inside of the Range G impact and ballistic launch facility.
NASA's Orion spacecraft awaits the U.S. Navy's USS Anchorage for a ride home. Orion launched into space on a two-orbit, 4.5-hour test flight at 7:05 am EST on Dec. 5, and safely splashed down in the Pacific Ocean, where a combined team from NASA, the Navy and Orion prime contractor Lockheed Martin retrieved it for return to shore on board the Anchorage. (U.S. Navy Photo)
NASA's Orion spacecraft awaits the U.S. Navy's USS Anchorage for a ride home. Orion launched into space on a two-orbit, 4.5-hour test flight at 7:05 am EST on Dec. 5, and safely splashed down in the Pacific Ocean, where a combined team from NASA, the Navy and Orion prime contractor Lockheed Martin retrieved it for return to shore on board the Anchorage. (U.S. Navy Photo)
The United Launch Alliance Delta IV Heavy rocket, with NASA’s Orion spacecraft mounted atop, lifts off from Cape Canaveral Air Force Station's Space Launch Complex 37 at 7:05 a.m. EST, Dec. 5, in Florida. AEDC test teams supported Exploration Flight Test-1 by assisting in testing several key components for the aircraft. (Photo by Bill Ingalls, NASA)
This photo shows the arc heater H3 being test fired prior to the installation of a model injection system. (AEDC Photo)
The Orion crew module, stacked atop its service module, moved out of the Neil Armstrong Operations and Checkout Building at NASA’s Kennedy Space Center in Florida on Sept 11. Orion was transported to the Payload Hazardous Servicing Facility at Kennedy where it will be fueled ahead of its December flight test. During the flight, Orion will travel 3,600 miles into space to test the spacecraft systems before humans begin traveling in Orion on future missions. (Photo by Dan Casper, NASA)
The Orion crew module and launch abort system model as it appeared in one configuration during the aerodynamic effects testing it underwent in Arnold Engineering Development Complex’s (AEDC) 16-foot transonic wind tunnel. (Photo by Rick Goodfriend)
An Orion Crew Exploration Vehicle heat shield material sample model undergoes preproduction aerothermal testing in the H2 test facility as part of a facility validation and calibration run. (Photo by Rick Goodfriend)
The DebriSat, a non-functional full-scale representation of a modern satellite, is shown in the Range G target tank surrounded by
Rick Goodfriend

DOWNLOAD PHOTO
(0.6 MB)


Tags
Space & Missile, Minuteman
